Audi tests Star Trek 'holodeck' for car design

Virtual reality system allows development engineers and production experts to gain a realistic overall impression of a new model and its proportions

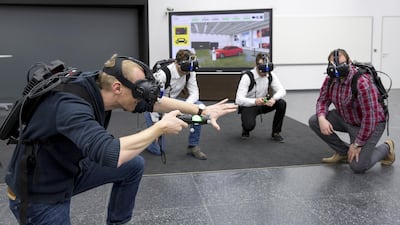

Martin Rademacher (left) and his colleagues from Audi’s planning are testing the Virtual Reality Holodeck to assess the design of a new automobile model.
Powered by automated translation

Audi is testing a so-called virtual-reality "holodeck" for checking the design of new models via a walkable, virtual environment containing a three-dimensional image of a prototype car.

“With the VR holodeck, we obtain a realistic impression of the proportions of our future models. This enables us to make important decisions faster,” says Martin Rademacher, who is in charge of the VR holodeck project at Audi.

But to analyse individual aspects in detail, two-dimensional representations are still used: “They currently offer even better resolution and better quality than the walkable VR installation,” says Mr Rademacher.

The holodeck, however, allows development engineers and production experts to gain a realistic overall impression of a new model and its proportions at an early stage. In this way, Audi says it can reduce the number of complex physical test models, thus saving development time and costs.

Since 2003, Audi has been using virtually created 3D models in its development processes and the VW-owned company says it will increasingly apply VR technologies in the future.

The term “holodeck” comes from the science-fiction series Star Trek and refers to a special room that simulates virtual worlds. Essentially, that is what happens with the holodeck at Audi. In a room approximately 15 metres by 15 metres square, car prototypes can be displayed realistically and with the correct proportions.
